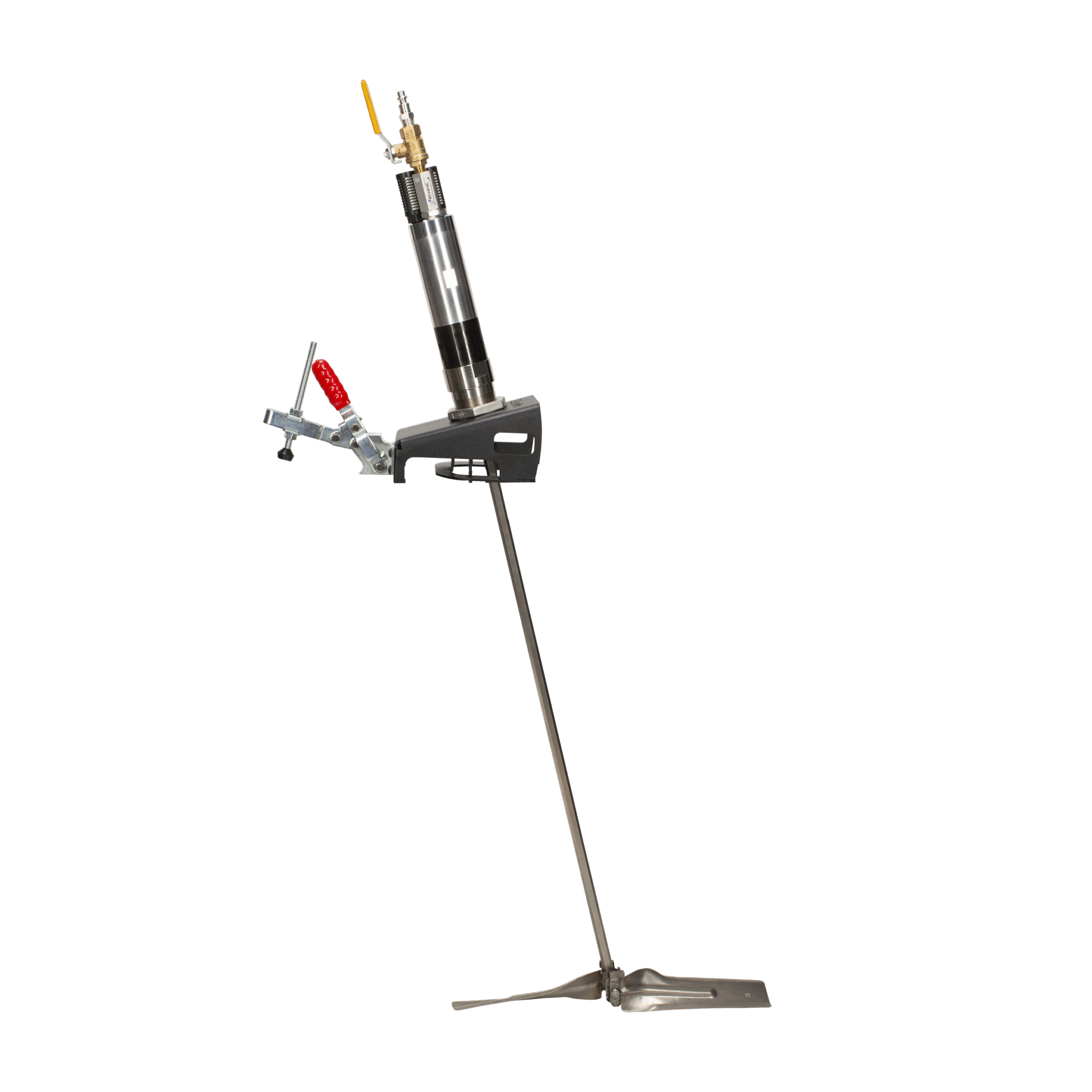

Even Mix™ Drum and Barrel Bung Mixer - Mount, 32" Shaft, and Variable Pitch Blade Set ONLY

Short Description

#M-B-29-0-15-02-3-1 – Even Mix™ Closed-Head Drum and Barrel Mixer – 1 Set of Blades (No Motor/Drive)  This package ONLY INCLUDES the accessories to mix in 55-gallon barrels and drums with closed-heads. If you need a motor/drive, we suggest these packages: Air Driven Geared Closed Head Drum and Barrel Mixer or Digital (Electric) Geared Closed Head Drum and Barrel Mixer .  The Even Mix™ Drum and Barrel Mixer features our Bung Clamp Mount and our Patented Mixing Blades.  Designed to be used in 55-gallon barrels and drums containing chemicals, adhesives, polymers and beyond.  Our patented Even Mix™ variable pitch blades mix your contents in a 3D motion – we don’t stir like others.  We’ve tested substances up to 50,000 cps and found that our mixers can handle even some of the thickest viscosities.
Click Here to see our Drum and Barrel product page with additional information.Click Here for a Comparison of Even Mix, Indco, Mixer Direct, Cary Company, and Fusion
$800.00

Related Products

Fast answered questions

Description

Even Mix™ Drum and Barrel Mixer – Mount, 32″ Shaft, and 15″ Variable Pitch Blade Set ONLY (no Drive/Motor).

The Even Mix™ Drum Mixer is a revolution to the 55-gallon barrel and drum market. Never before have you been able to insert into a closed head a mixing blade as large and capable of mixing your liquids. Even Mix™ is the answer to your mixing challenges.

Power and Stability (motor not included)

We have a powerful geared drive motor available in air or electric enhanced with our gearbox that is built from engineered metals built to last with 2 big beefy bearings capable of taking heavy loads. Our bracket is easy to install and engineered to securely hold the drive and mixer steady. It won’t wobble.

Patented Mixing Blade

With all of that going for it, the real genius is in the mixing blade. It’s a folding twisted blade that expands to 15” in diameter when fully expanded. The Even Mix™ patented blade folds to fit into a 2” bung side or center opening. That’s right, a variable pitch blade (not a mixing paddle which doesn’t create much mixing or a straight pitch blade which creates cyclones that suck air into your liquid) but a patented Even Mix™ blade that goes from 90 degrees to 30 degrees and in several of our videos is proven to produce a superior mix – in a closed head drum.

3D Mixing Performance

Look at how the Even Mix™ moves liquid around the drum as it circulates material and liquid. This drum is filled with 1,000 centipoise liquid glycerin (about the consistency of paint) with some blue stars and sand, yes sand. You can even see how it picks up sand from the bottom of the drum and moves it around the container. We have really had a breakthrough with this mixer by engineering a way to get the blade into the drum. All wetted parts are made from Non-reactive food-grade stainless steel 316.



You can put it where?

How can you use it? In a closed head drum or barrel with a 2 inch bung to the side of a top lid (with the mounting bracket).  In a closed head with a 2-inch center bung on the top lid.  In an open head with a 1 1/2 inch or 2-inch center bung in the top lid.  All Yes! Just pick your drive – air or electric. Could you use this same mixer on an IBC – yes. Even Mix™ is modular so you can use it in the way that suits your needs.

Installation & Operation

The Even Mix™ blades insert easily through a 2-inch bung opening on your barrels and drums. They fold down to a compact shape that effortlessly fits into a closed head opening. Once they begin to turn the hydrodynamic forces open the blades and they go to work on your liquid. When you’re done mixing and stop the air or electric drive the blades will relax and fold back down ready to be moved to the next drum or barrel. It’s a simple design that is going to revolutionize how you mix barrels. No more rolling the drum on the floor or a stand. No more inserting a bunch of small mixing blades in through the top lid. Get an Even Mix™ and get the job done right, quick, and easy.

Watch a demonstration of the Even Mix™ Drum and Barrel Mixer at work on our YouTube channel.

We offer Even Mix™ blades for IBC Tote Mixers, 55 gallon drums, barrels, and large tank mixing.  Whatever your mixing need – we’ve got you covered (mixed, blended, whatever you prefer!)

Questions? Feel Free to Contact Us at 440-236-6677 or by Emailing Sales@Evenmix.com



Additional information

Weight12 lbs
Dimensions37 × 9 × 9 in
Shaft Length

29

Max RPM

160

Motor Type

Air

Horsepower

1.25

Blade Sets

One

Blade Type

Folding

Mixer Mount

2" Bung Bracket
